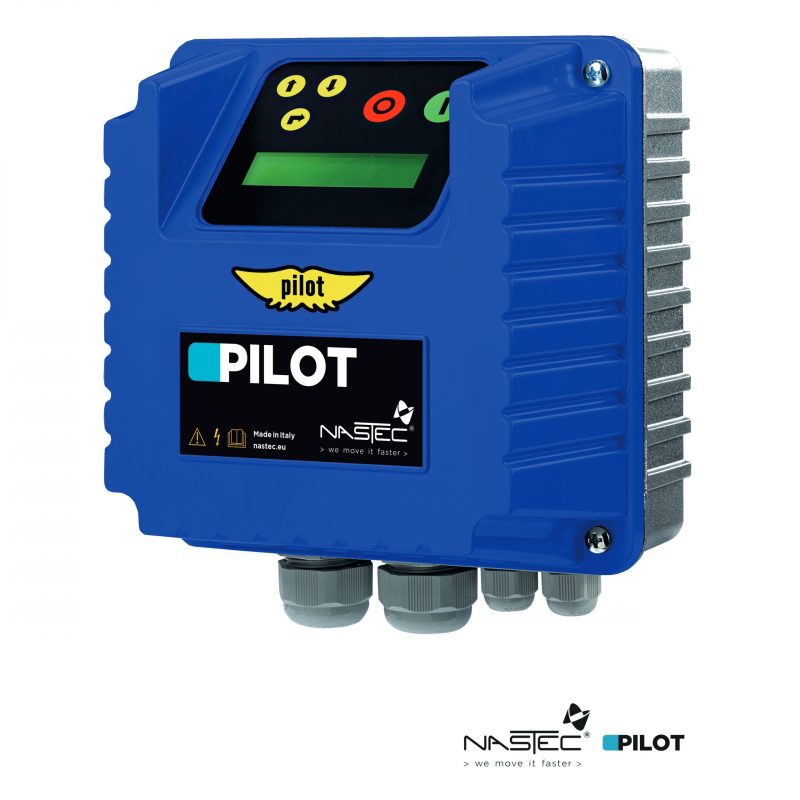

PILOT Control Panel

PILOT is an electronic device for the control of single-phase and three-phase motors (pumps) that provides protection against:

Surges, phase loss, excessive number of starts

The backlit LCD displays the running current, and PILOT stops the pump if the maximum value set by the user is exceeded. The maximum number of pump starts is also user selectable, and PILOT will stop the pump’s operation if this value is exceeded.

Dry running

PILOT provides a display of the power factor value (P.F. or cosø) and allows the user to set a minimum threshold value for normal operation. PILOT will stop the pump below this value to protect against dry running.

PILOT will make up to 5 automatic restart attempts following an alarm condition, at time intervals set by the user. PILOT stores the number of pump starts and total running hours in memory. The alarm history is also stored to assist with servicing.

The body is constructed entirely of aluminium, making PILOT extremely solid and easily cooled. The IP55 protection makes it possible to install PILOT even in humid and dusty environments.
